BDP 20x20x5 Air Filters Won't Fit? Fix the Size Gap
Pull a brand-new BDP 20x20x5 out of the box, drop it in, and you can already feel it wiggle. A sliver of daylight shows at the cabinet door, and the moment your blower spins up, something rattles. Most homeowners assume they bought the wrong size. They didn't. The 20x20x5 printed on the frame is a rounded label, not the true measured size, and that small gap is built in on purpose. We're obsessed with what happens to the air inside your home, so we'll make this invisible mismatch easy to see and easy to fix.
TL;DR Quick Answers
BDP 20x20x5 Air Filters
A BDP 20x20x5 is a 5-inch deep-pleat media filter with a nominal size of 20 by 20 by 5 inches and an actual measured size of about 20.75 by 20.25 by 5.25 inches. It drops into Bryant, Carrier, and BDP air-cleaner cabinets and replaces common parts like P102-2020, M2-1056, and CMF2020. If it feels loose, you're sizing the label instead of the filter. Match the real dimensions, press the foam strip into place, and the rattle goes quiet.
Top 5 Takeaways
The 20x20x5 on the box is nominal. The real filter measures close to 20.75 by 20.25 by 5.25 inches, so a small gap is expected, not a defect.
BDP, Bryant, and Carrier come from the same cabinet family, so one filter spec covers part numbers like P102-2020, M2-1056, and CMF2020.
Most loose-fit and rattling complaints clear up once you seat the foam strip and point the airflow arrow toward the blower.
MERV 8, 11, and 13 all fit the same slot. Pet and allergy households usually step up to 11 or 13 for finer capture.
Measure the old filter and the cabinet opening before you reorder. The printed size is a starting point, not a promise.
Why Your BDP 20x20x5 Air Filter Feels Too Loose Or Too Tight
The number on the frame is a nominal label. Manufacturers round the real dimensions to a clean figure so the filter is easy to shop for, which means your BDP measures a hair under the cabinet on every side. That built-in clearance is what lets you slide it in without a fight, and it is also what you feel as play. Here is what people describe to us most:
Side-to-side movement when you nudge the filter with one finger
A thin gap at the edge of the cabinet door
A low rattle or whistle that starts the moment the blower runs
None of that means you bought the wrong filter. It means the label and the real measurement are two different numbers, which the next section spells out.
The Actual Dimensions Of A BDP 20x20x5 Air Filter
Most homeowners never get told the real number. A nominal 20x20x5 BDP filter actually measures about 20.75 inches wide, 20.25 inches tall, and 5.25 inches deep. That quarter inch of clearance here and there is deliberate, and it is why a fresh filter can still feel loose. Measure your existing filter across the frame, not corner to corner, then hold it against those numbers before you decide the size is wrong. If you run a bigger media cabinet somewhere else in the house, the same nominal-versus-actual gap shows up there too, which is why our deep-pleat 18x24x4 furnace filter guide walks through the same measuring step for that size.

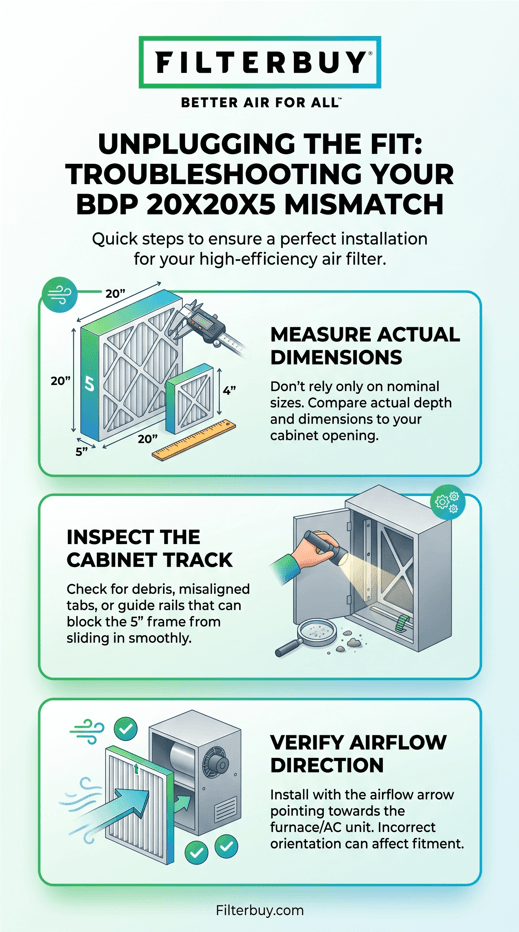

Quick Fixes For Gaps, Rattling, And A Loose Fit
Measure first. Pull the old filter, measure the frame, and confirm it reads close to 20.75 by 20.25 inches. Measure the cabinet opening while you are in there.
Seat the foam strip. Most 5-inch BDP media filters ship with a foam gasket strip. Press it along the edge that meets the door so the seal closes the gap.
Check the arrow. The airflow arrow on the frame has to point toward the blower and away from the return. A backward filter bows and rattles.
Inspect the door gasket. A flattened or missing cabinet gasket lets air whistle past the filter. Swap it if it no longer springs back.
Confirm the cabinet size. If the filter is truly too tight to seat, your cabinet may be built for a different nominal size. Measure the slot before you force the door.
Confirming You Have The Right BDP, Bryant, Or Carrier Filter
BDP shares a cabinet family with Bryant, Carrier, Day & Night, and Payne, so a single 20x20x5 spec covers several brand labels and a long list of part numbers. If your old filter or air-cleaner cabinet shows any of these, you are in the right place:
BDP: P102-2020, M2-1056, CMF2020, P102-MF14B
Bryant: BMF2020, P102-2020, B2-1056
Carrier and Totaline: P102-2020, CMF2020, FS2020
Goodman: MU2020
Read the part number off the old frame and match that, not the brand on the furnace. Buying on brand name alone is one of the mistakes homeowners make when choosing a filter, and it is an easy one to sidestep. on cross-reference fitment.
Choosing The Right MERV Rating For Your BDP 20x20x5 Replacement
Every BDP 20x20x5 replacement comes in more than one efficiency level, and they all drop into the same slot. MERV is the scale that tells you how small a particle the media can trap. If you want the background on how filter media actually works, the air filter reference article is a solid primer. For choosing a number, here is the short version:
MERV 8 (bdp 20x20x5 merv 8): everyday dust, lint, and pollen. A solid default for a tidy home with no pets.
MERV 11 (bdp 20x20x5 merv 11): the pet-and-allergy pick. It grabs finer dander and smoke-range particles down to about one micron.
MERV 13 (bdp 20x20x5 merv 13): the finest residential capture, built for sensitive lungs and wildfire-season air.
Higher MERV does not change the fit. A 20x20x5 furnace filter MERV 11 seats exactly like the MERV 8, so you can step up protection without touching the cabinet.
How Often To Replace Your BDP 20x20x5 Air Filter
A 5-inch deep-pleat filter holds far more dust than a 1-inch panel, so it runs longer between changes. Use these as starting points:
Typical homes: check at three months, replace by six on any product-specific service-life claim.
Pets, smokers, or allergies: check monthly and replace every three months.
Replace sooner if airflow weakens, dust starts settling faster, or run cycles stretch longer.
Replacement for fresh BDP 20x20x5 air filters is cheap insurance against a strained blower and a coil caked in grime.
“After years of pulling loose 20x20x5 filters out of Bryant and Carrier cabinets, I'll tell you the gap almost always comes down to one skipped step, not a bad filter. People match the printed size and toss the foam seal that closes the last quarter inch.”
— Filterbuy Filtration Specialist
Essential Resources For BDP 20x20x5 Air Filters
Once the fit is handled, these are the next stops we point people to. Each one is a primary government or nonprofit source, so you are getting guidance you can trust, not marketing dressed up as fact.
Learn How HVAC Filters Actually Clean Your Air
The EPA's home air-cleaner guide lays out what a furnace or HVAC filter can and cannot pull from your air, so you set expectations before you upgrade MERV. It is the plain-language source behind a lot of what reputable filter brands tell you.
Source: U.S. Environmental Protection Agency
See Why MERV 13 Is The Health-Driven Sweet Spot
The American Lung Association explains how higher-MERV furnace filters catch more fine particles, and why they push people to step up when someone in the home has a lung condition.
Source: American Lung Association
See What The Science Says About Filtration's Health Payoff
Lawrence Berkeley National Laboratory's indoor-air resource bank sums up the peer-reviewed evidence on how much particle filtration actually improves health, so you can weigh a MERV upgrade with clear eyes.
Source: Lawrence Berkeley National Laboratory
Build A Filter-Change Routine That Saves Energy
The ENERGY STAR maintenance checklist puts the filter check on a monthly rhythm alongside the rest of your system, which keeps airflow strong and your bills lower.
Source: ENERGY STAR
Protect Your Coil And Blower From Dirty-Filter Damage
The U.S. Department of Energy shows how a clogged filter starves airflow and lets grime reach the evaporator coil, the expensive failure a clean 20x20x5 helps you avoid.
Source: U.S. Department of Energy
Make A Loose Filter Seal Tighter For Cleaner Air
CDC ventilation guidance stresses that filters only help when they fit snugly in the rack, which is the exact gap this page helps you close.
Source: Centers for Disease Control and Prevention
Avoid Air Cleaners That Do More Harm Than Good
The Environmental Working Group's home air-filter guide gives plain dos and don'ts, including a warning to skip ionizing cleaners that can pump ozone into your air, plus a simple MERV floor for central systems.
Source: Environmental Working Group
Supporting Statistics
A few numbers explain why a properly fitted, properly rated 20x20x5 matters more than most homeowners assume.
Your Filter Touches Every Room's Air
About 88 percent of U.S. households run air conditioning, and roughly two-thirds rely on central systems that pull every cubic foot of air through a filter like your 20x20x5. So a loose or wrong filter does not just affect one room; it affects the air your whole family breathes.
Source: U.S. Energy Information Administration
Allergy Relief Starts At The Filter Slot
More than 100 million people in the United States deal with allergies each year, which is why moving from MERV 8 up to MERV 11 or 13 is the single change we recommend most.
Source: Asthma and Allergy Foundation of America
Tighter Filtration Means Measurably Cleaner Air
In a U.S. randomized study, high-efficiency central HVAC filtration cut indoor PM2.5 by roughly 50 percent and PM10 by about 30 percent. Those numbers only hold if the fit is tight, because air takes the path of least resistance straight around a loose filter.
Source: National Institutes of Health (PMC)
Final Thoughts And Opinion
The BDP 20x20x5 fit problem is almost always a measuring problem in disguise. Once you know the real filter runs about 20.75 by 20.25 by 5.25 inches, that gap stops looking like a defect and starts looking like the clearance it was designed to be.
Here is our honest opinion after years of this work. The foam seal strip is the most ignored part in the whole box. People throw it out with the packaging, then wonder why the door rattles. Use it. These three habits prevent almost every callback we get:
Buy by part number, not the brand stamped on your furnace.
Step up to MERV 11 if anyone in the house sneezes their way through spring.
Keep one spare 5-inch filter on the shelf so you never run the system bare.
Get those three right and the size-mismatch headache stays gone.
Frequently Asked Questions
Q: What Is The Actual Size Of A BDP 20x20x5 Air Filter?
A: About 20.75 inches wide, 20.25 inches tall, and 5.25 inches deep. The 20x20x5 on the box is the rounded nominal size, which is why a correct filter still leaves a little clearance.
Q: Why Does My BDP 20x20x5 Filter Fit Loosely?
A: You are comparing it to the printed label instead of the actual dimensions, and that clearance is normal. Seat the foam strip, point the airflow arrow toward the blower, and the looseness goes away.
Q: Is A Carrier Or Bryant 20x20x5 Filter The Same As A BDP One?
A: In almost every case, yes. BDP, Bryant, and Carrier share the same cabinet family, so one 20x20x5 media filter cross-references part numbers like P102-2020, M2-1056, and CMF2020.
Q: What MERV Rating Should I Use For A BDP 20x20x5 Filter?
A: MERV 8 for a clean, pet-free home, MERV 11 for pets or allergies, and MERV 13 for sensitive lungs or wildfire season. All three fit the same slot, so this is about the air you want, not the fit.
Q: How Often Should I Replace A BDP 20x20x5 Air Filter?
A: Check at three months and replace every six months in a typical home, sooner with pets, smokers, or allergies. Weak airflow and faster dust buildup are your early warning signs.
Get The Right BDP 20x20x5 Fit On The First Try
Measure your old frame, match the real 20.75 by 20.25 by 5.25 dimensions, and pick the MERV that fits your household instead of guessing. Order your next BDP 20x20x5 air filter today, seat it with the foam strip, and breathe easier knowing the fit is clean and the rattle is gone.
